Dolby Demo Trailers HD and SD

A practical look at audio formats for home theater setups

Dolby demo trailers are widely used to test home theater and professional cinema audio systems. Many people also refer to them as Dolby intros or Dolby demos, because they are short reference sequences designed to showcase imaging, dynamics and channel separation. Currently, there are many Dolby HD demo trailers available in this download section. When choosing a home cinema device, users are faced with a large number of options. If you are not very familiar with the topic, selecting the best solution can become difficult simply due to the amount of available choices.

What do you know about this system?

The sound format known as Dolby Surround appeared at the beginning of the eighties. The Pro Logic sound system was developed by Dolby Laboratories. Until then, stereo sound was the standard, using only two channels. With stereo playback, one channel is sent to the left speaker and the other to the right. While this was a major step forward at the time, it remained unchanged until Dolby Surround was introduced. This format added an additional channel, creating a more immersive listening experience and a greater sense of auditory realism.

Technical overview of the main formats

Below you will find some basic technical information about the most common surround sound formats, without going too deeply into complex details. This overview will help you understand the differences between various Dolby demo trailers HD. We recommend using the Dolby Digital trailers and the Dolby demo trailers HD section to compare formats before deciding which one best suits your home cinema system. Testing these trailers directly allows you to identify differences in sound imaging, dynamics and channel separation in a practical way.

In practice, using the same Dolby demos repeatedly after each change (levels, crossover or distance) is the fastest way to hear what improved and what didn’t.

Analog surround formats

One of the most widespread systems included in the Dolby Demo Trailers HD section is Dolby Surround Pro Logic. This format evolved from the original Dolby Surround system. In addition to the three original channels, it introduced a dedicated center channel for dialogue, significantly improving vocal clarity and overall sound localization. This represented an important step forward in the development of multichannel audio reproduction.

Typical speaker layout

– A central speaker placed in front of the listener, responsible for dialogue reproduction.
– Front left and right speakers, combined with two rear speakers, creating a surrounding sound field.

To meet the demand for personal listening solutions, Dolby also developed surround technologies for headphones. This led to the creation of Dolby Headphone (DH), allowing users to experience a virtual multichannel environment using standard headphones. Using 7.1 surround sound samples, these systems simulate the perception of multiple speakers, delivering a convincing home cinema experience even with compact earphones.

Digital surround formats

Dolby Digital Plus, also known as DD+ or AC-3, was introduced in 2004. It was designed to deliver high-quality multichannel audio while remaining compatible with digital television broadcasts. Dolby Digital Plus offers efficient compression while preserving audio clarity and dynamic range. However, this compression also means that the format is not always compatible with older audio equipment.

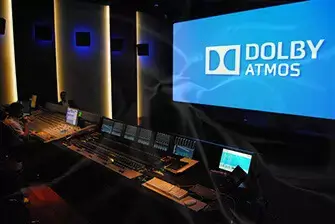

Dolby Atmos

In 2014, Dolby introduced a major evolution in surround sound technology with Dolby Atmos. This system moved away from traditional channel-based audio and introduced the concept of audio objects. Instead of being tied to specific speaker channels, sounds can be placed and moved freely within a three-dimensional space.

An audio object can be any sound within a scene, such as a voice, an explosion or an ambient effect. The Dolby Atmos system dynamically distributes these objects across all available speakers, creating a highly realistic and immersive sound environment. While Atmos systems benefit from additional speakers, even relatively compact setups can deliver impressive results.

All these Dolby demo trailers are available from the Dolby Atmos download section, including several Dolby Atmos intros that are perfect for checking height effects and envelopment. Testing different formats will help you identify the solution that best matches your equipment and listening preferences.

How to use these trailers for a proper sound check

For the best results, play each file in a quiet room and keep your receiver in “direct” or “auto” mode, so it decodes the original track without extra processing. Start with a simple channel check to confirm that every speaker is connected correctly and placed where it should be. Then move to the more dynamic clips, which make it easier to spot issues such as weak surrounds, a center channel that feels recessed, or bass that is either boomy or missing entirely.

If something sounds off, don’t rush to change your whole setup. First, verify speaker polarity, levels, and distances in the AVR menu. Many problems come from a small mismatch in level or a crossover setting that doesn’t fit your speakers. Also keep in mind that some players can downmix multichannel audio depending on the output settings, so make sure your device is set to bitstream (or passthrough) when available.

Files are provided in common formats such as VOB, MKV and M2TS. If one format doesn’t play correctly on your device, try another version of the same trailer. That way you can focus on what matters: consistent, repeatable tests that help you understand what your system is actually doing in real scenes.
